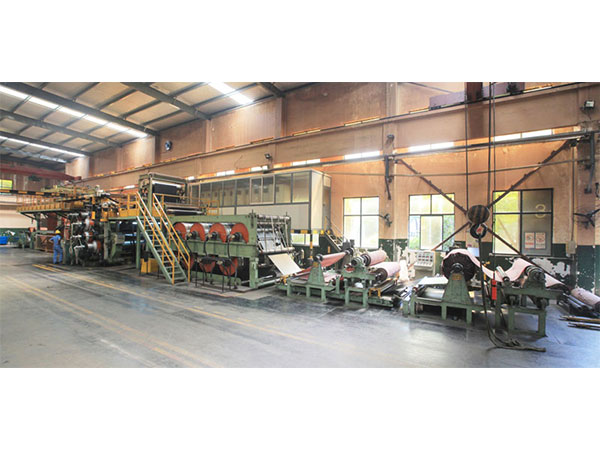

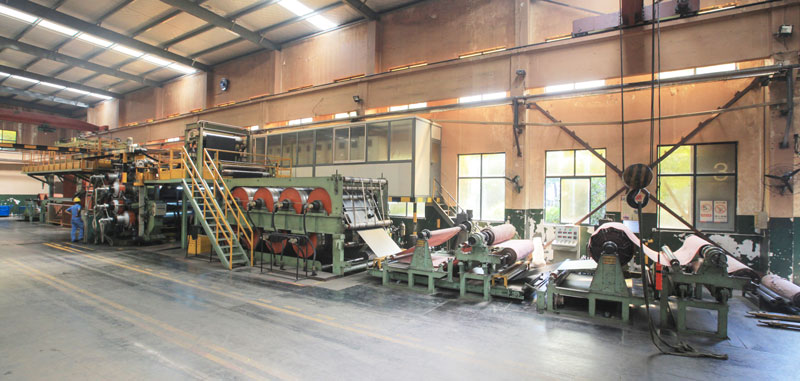

It is mainly used for producing rubber conveyor core, double-face coating of canvas and pure rubber sheet.
|
型號 Model |
XY-3F1520 | XY-3F1730 | XY-3F2800 | XY-3F3400 | XY-4S1730 | XY-4S2030 | XY-4S2250 | XY-4S2250 | XY-4S2500 | XY-4S3400 |
|---|---|---|---|---|---|---|---|---|---|---|
|
輥筒直徑(mm) Roll diameter |
560 | 610 | 820 | 900 | 610 | 660 | 710 | 760 | 820 | 900 |
|
輥筒工作長度(mm) Roll working length |
1520 | 1730 | 2540 | 3400 | 1730 | 1830 | 1850 | 2300 | 2540 | 3400 |
|
驅動輥線速度(m/min) Drive roll liner speed |
1.5～15 | 4～40 | 3～30 | 4～40 | 4～40 | 4～40 | 4～40 | 4～40 | 4～40 | 4～40 |
|
制品寬度(mm) Max.product width |
1300 | 1500 | 2200 | 3100 | 1500 | 1600 | 2000 | 2000 | 2200 | 3100 |
|
制品小厚度(mm) Min.product thickness |
0.2 | 0.2 | 0.2 | 0.2 | 0.2 | 0.2 | 0.2 | 0.2 | 0.2 | 0.2 |
|
電機功率(kw) Motor power |
75 | 55×3 | 132×3 | 220×3 |
90×2, 110×2 |
90×2, 110×2 |
110×2, 132×2 |
132×4 | 132×4 |
160×2, 200×2 |
