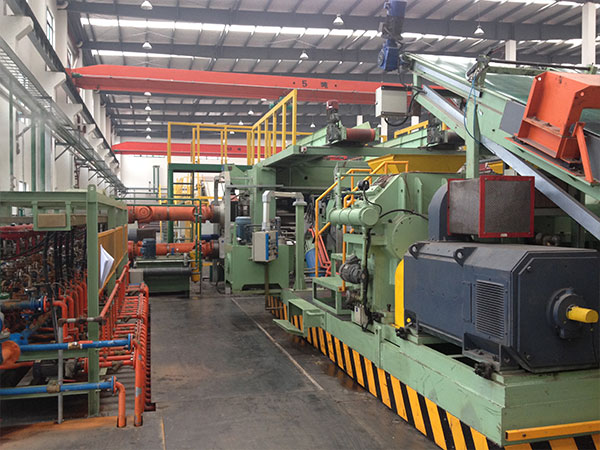

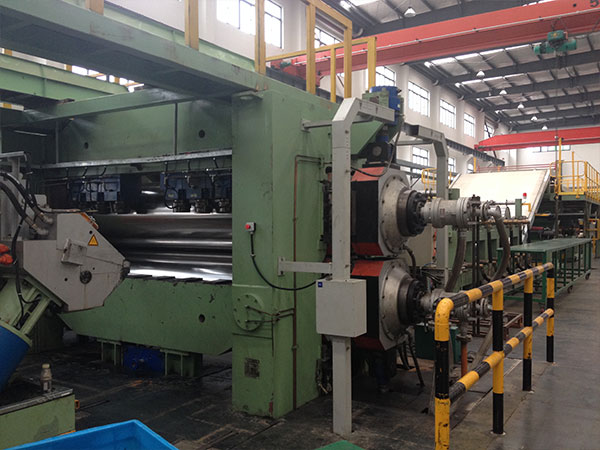

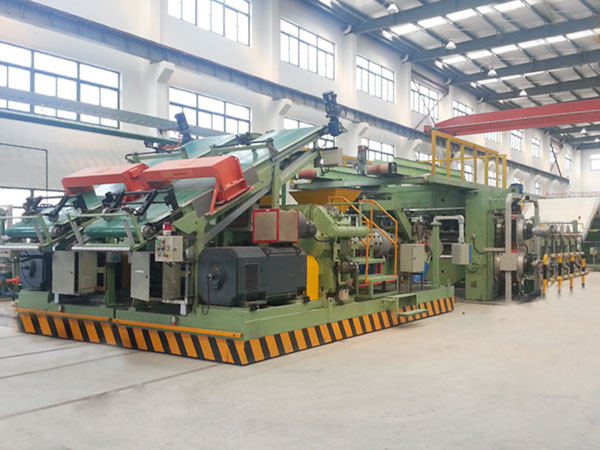

It is mainly used to extrude the wide rubber products with high quality, especially applied to produce rubber conveyor belt and can ensure continuous stability of product’s section size.
|
參數(shù)/型號 Parameter/Type |
XJP-250/250/2200W | XJF-250/250/2800W | XJF-250/1800W | XJF-300/2200W |
|---|---|---|---|---|
|
制品寬度mm Max.product width |
2200 | 2800 | 1800 | 2200 |
|
擠出機機型 Extruder model |
250X250 | 250X250 | 250 | 300 |
|
擠出機功率 kw Extruder power |
450X450 | 450X450 | 450 | 750 |
|
壓延機規(guī)格 Calender model |
820X2500 | 820X3000 | 660X2030 | 710X2500 |
|
產(chǎn)能 kg/h Max.output |
7000 | 7000 | 3500 | 5500 |
|
生產(chǎn)線速度m/min Max.speed of production line |
20 | 20 | 20 | 20 |
