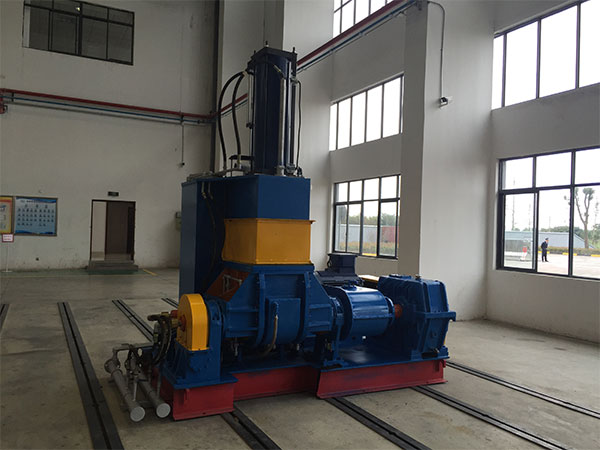

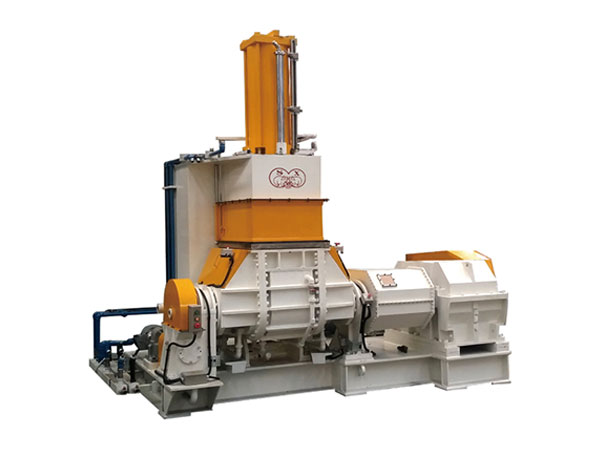

It is mainly used for rubber or plastics mixing, plasticizing .
1.Entire machine adopts an integrated base, which is convenient for installation and calibration.
2. The transmission adopts hard tooth surface gear reducer with stable transmission, low noise and long service life.
3. The mixing chamber is made of alloy steel with hard chrome plating on the surface, which is wear-resistant and has an aesthetic appearance.
4. The rotor is made of alloy, the protrusion part is overlaid with hard alloy, and the surface is plated with hard chromium, which is smooth and wear-resistant. The rotor adopts hollow structure, which can be cooled (water) or heated (steam, heat transfer oil).
5. The sealing structure adopts exclusive advanced technology, with self-lubricating performance and good sealing effect.
6.Control system adopts PLC that has perfect signal detection, feedback , safety protection and operates conveniently .
|
型號 Model |
XN-3/40 | XN-10/40 | XN-20/40 | XN-35/30 | XN-55/30 | XN-75/30 | XN-110/30 | |
|---|---|---|---|---|---|---|---|---|
|
捏合總容積(L) Total volume of mixing chamber |
8 | 25 | 45 | 75 | 125 | 170 | 250 | |
|
捏合工作容積(L) Working volume of mixing chamber |
3 | 10 | 20 | 35 | 55 | 75 | 110 | |
|
轉子轉速（前/后）(r/min) Speed of rotor (front/rear) |
40/31 | 40/31 | 40/31 | 30/24.5 | 30/24.5 | 30/24.5 | 30/25 | |
|
壓縮空氣壓力(mpa) Compressed air pressure |
0.6-0.8 | 0.6-0.8 | 0.6-0.8 | 0.6-0.8 | 0.6-0.8 | 0.6-0.8 | 0.6-0.8 | |
|
冷卻水壓力(mpa) Cooling water pressure |
0.3-0.4 | 0.3-0.4 | 0.3-0.4 | 0.3-0.4 | 0.3-0.4 | 0.3-0.4 | 0.3-0.4 | |
|
主電機功率(kw) Main motor power |
7.5 | 22 | 37 | 55 | 75 | 110 | 185 | |
|
翻轉電機功率(kw) Turning motor power |
0.55 | 1.1 | 1.5 | 1.5 | 2.2 | 4 | 4 | |
|
翻轉角度(°) Turning angle |
140 | 140 | 140 | 140 | 140 | 140 | 140 | |
|
外形尺寸(mm) Overall dimension |
長(L) | 1670 | 2300 | 2360 | 3240 | 3400 | 3860 | 4225 |
| 寬(W) | 950 | 1350 | 1750 | 2080 | 2300 | 2300 | 1980 | |
| 高(H) | 1880 | 2120 | 2430 | 2650 | 3100 | 3375 | 3180 | |
|
重量(T) Weight |
1.2 | 2.3 | 4.5 | 6.5 | 7.5 | 10 | 11 | |
