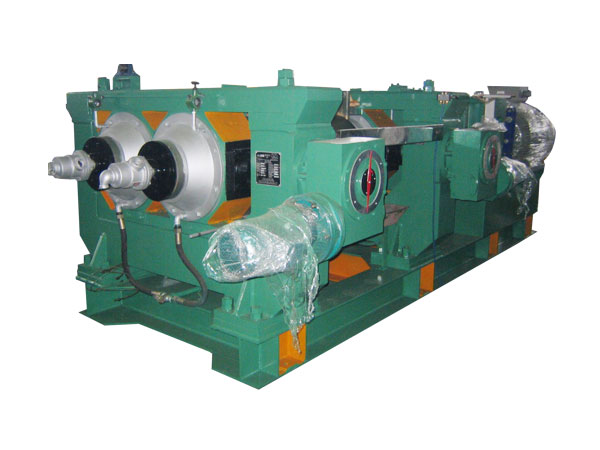

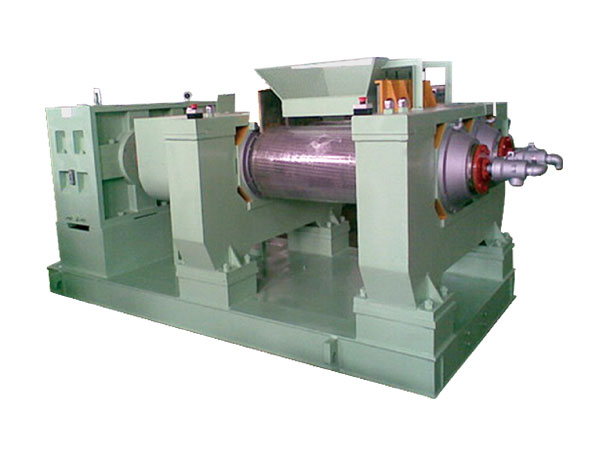

It’s applicable for breaking scrap rubber and virgin rubber, or breaking scrap radial steel tires.
1. The roll is made of chilled cast iron with vanadium and titanium alloys. The roll face is hard and anti-wear （Or choose high grade steel with hard alloy welded on the surface）. The back roll is fluted. The internal cavity of the roll is processed to make temperature well proportioned on the roll surface.
2. The machine is equipped with an overload protection device to prevent the major components from damaged due to overloading.
3. The machine is equipped with an emergency device. When an emergent accident happens, just draw the safety pull-rod, and the machine will stop immediately. It’s safe and reliable.
| 型號 Model | XKP-400雙光 Double smooth | XKP-400單溝 Single flute | XKP-400雙溝 Double flutes | XKP-560單溝 Single flute | ZKC-560雙溝 Double flutes | |
| 輥筒直徑(mm) Roll diameter | 400 | 400 | 400 | 560/510 | 560/510 | |
| 輥筒工作長度(mm) Roll working length | 600 | 600 | 600 | 800 | 800 | |
| 前輥線速度(m/min) Front roll linear speed | 17.15 | 17.15 | 17.15 | 25.6 | 25.6 | |
| 輥筒速比 Roll friction ratio | 1:1.38 | 1:1.38 | 1:1.38 | 1:1.428 | 1:1.55 | |
| 破膠量(kg/h) Rubber cracking capacity | ≥28目?70—110 ≥28mesh 70-110 | 3-5目600-800 3-5mesh 600-800 | 3-5目600-800 3-5mesh 600-800 | 3-5目600-800 3-5mesh 600-800 | 3-5目600-800 3-5mesh 600-800 | |
| 電機功率(kw) Motor power | 55 | 55 | 55 | 75 | 90 | |
| 外形尺寸(mm) Overall dimension ? | 長(L) | 3520 | 3520 | 3520 | 5120 | 5120 |
| 寬(W) | 1710 | 1710 | 1710 | 2300 | 2300 | |
| 高(H) | 1850 | 1850 | 1850 | 2000 | 2000 | |
| 重量(t) Weight | 7.7 | 7.7 | 7.7 | 19 | 19 | |
